Lifting Machines
Reliable, Efficient Material Handling
Maximize Productivity with Smooth and Safe Lifting Solutions
▶ Introduction

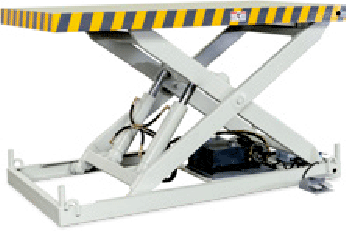

The lifting machine is designed to handle heavy materials, ensuring their safe and efficient movement throughout the production line.
Whether used to position materials for pressing or to transport large workpieces, our lifting machines reduce manual labor and increase workflow efficiency. With high load capacity and smooth operation, these machines are essential for modern production lines.
▶ Key
Features
High Load Capacity:
Capable of lifting heavy materials, perfect for large-scale operations.
Smooth and Precise Lifting:
Ensures safe and controlled lifting of materials to the required height.
Durable Design:
Built for long-term use in demanding industrial environments.
Our lifting machines are essential for efficiently moving materials in hot and cold press production lines.
They are perfect for handling large panels, heavy composite materials, and other bulky workpieces, reducing manual intervention and ensuring safety and efficiency in the production process.
◀ Applications
▶ Technical Specifications
Model | MF1224 |
Working table size | 1200 x 2400mm |
Max load | 3000kg |
Min height | 350mm |
Movements itinerary | 1400mm |
Oil cylinder | 2pcsxФ80mm |
Power of oil pump motor | 2.2kW |
Dimensions | 2400 x 1200 x 350mm |
Net weight | 800kg |
Model | MF1224-A |
Working table size |
1200 x 2400mm |
Max load |
3000kg |
Min height |
350mm |
Movements itinerary |
1400mm |
Oil cylinder |
2pcsxФ80mm |
Power of oil pump motor |
2.2kW |
Dimensions |
2400 x 1200 x 350mm |
Net weight |
800kg |
Model | MF1224 |
Working table size |
1200 x 2400mm |
Max load |
3000kg |
Min height |
410mm |
Movements itinerary |
1400mm |
Oil cylinder |
2pcsxФ80mm |
Power of oil pump motor |
2.2kW |
Dimensions |
2400 x 1200 x 350mm |
Net weight |
850kg |
Model | MF1914-E |
Working table size |
1950 x 1400mm |
Max load |
3000kg |
Max height |
930mm |
Min height |
150mm |
Power motor |
2.2kW |
Net weight |
400kg |
