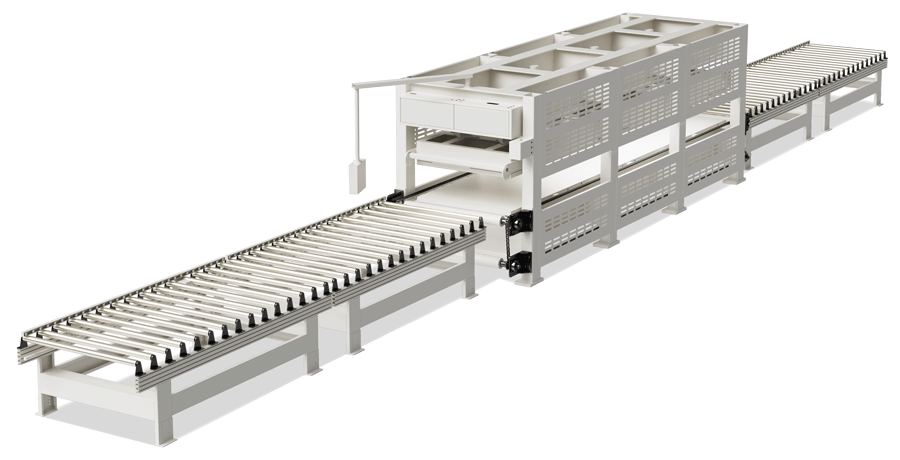

Hot Press Machine
- Efficient and Reliable
- for Plywood and Composite Materials
- High Quality, Affordable Price
▶ Introduction
The hot press machine is a key piece of equipment for pressing plywood and wood-based composites.
Our hot press machine offers exceptional temperature control and efficiency, making it suitable for a wide range product manufacturing needs, enabling rapid pressing under high temperature and pressure conditions.
Our Machine Customizable Capacity: from 5 tons to 1200 tons.
A comprehensive service system ：including operation guidance and after-sales support, ensures a worry-free experience after purchase.
▼ Our Machine Quality
1. Precision Flatness
Rigorous Testing: paper test to ensure a perfectly flat table surface.
Advanced Machining: Large gantry milling machines ensure mirror-like flatness for even pressure distribution.
2. Durable Structure
Reinforced Design: Cross-grid table and U-shaped bending beam enhance strength and stability.

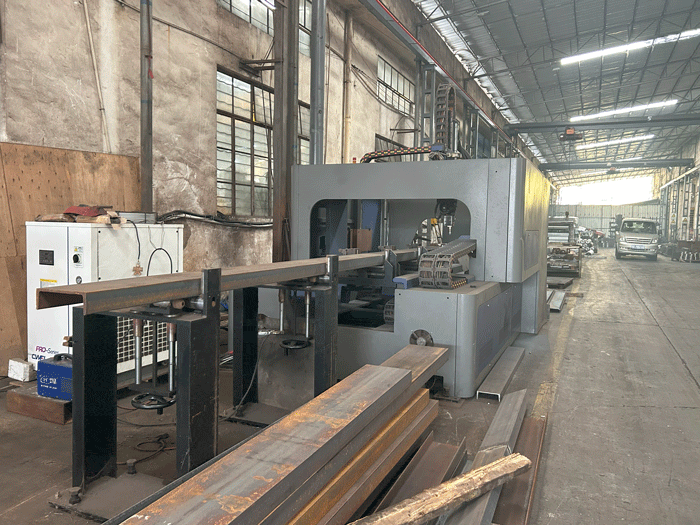

High Precision: Laser cutting and CNC bending ensure consistent accuracy.
3. Reliable Hydraulics
In-House Production: Cylinders are made with 10mm steel barrels and 90mm diameter pistons for superior performance.
Leak-Free Design: Double-seal systems with wear-resistant strips ensure durability for 3-5 years.
4. High-Quality Materials
Table and key components use 10mm thick steel plates for long-lasting durability.
▶ Key
Features
High Efficiency: heats up quickly and has a short pressing time, making it ideal for high-volume, efficient production.
Precise Temperature Control: Offers options for electric or oil heating based on process requirements.
Versatility: Suitable for pressing various materials, including veneered panels, metal sheets (e.g., honeycomb cores, stainless steel doors), wood veneers, and PVC.
Durable and Reliable: Built with a high-strength steel structure and high-quality hydraulic system, ensuring long-term stable operation.
Automation Options: Can be integrated with automated loading and unloading systems for enhanced production efficiency.
Easy Operation and Maintenance: Designed for user-friendly operation with a straightforward structure, making it easy to maintain and cost-effective over time.
▶Applications
Our hot press machines are widely used for bonding furniture panels, leveling, and shaping.
They are ideal for pressing wooden doors and various panels, ensuring high-quality output with fast production speeds and high efficiency.
These machines are extensively used in furniture manufacturing, door production, decorative panel processing, and other panel industries.
▶ Technical Specifications
▶ 100 ton / 120 Ton Hot press machine
1 layer and 2 layers. More layers available by request
100 ton hydraulic hot press – 3 layers
Working table: 2500 x 1300mm
160 ton hydraulic hot press – 5 layers
Working table: 2500 x 1300mm
120 ton hydraulic hot press – 2 layers
Working table: 3000 x 1300mm
Model | MH38 – 2513 x 100T – 1 | MH38 – 2513 x 100T – 3 | MH38 – 3013 x 120T – 1 | MH38 – 3013 x 120T – 3 |
Max pressure | 100T，3.07kg/cm2 | 100T，3.07kg/cm2 | 120T (3.08kg/cm2) | 120T (3.08kg/cm2) |
Number of working layers | 1 | 3 | 1 | 3 |
Number of hot plates | 2 | 4 | 2 | 4 |
Hot platen specification | 1300 x 2500 x 42mm | 1300 x 2500 x 42mm | 1300 x 3000 x 42mm | 1300 x 3000 x 42mm |
Spacing of hot press plate | 300mm | 100mm | 200mm | 100mm |
Quantity and specification of oil cylinder | 6pcsxΦ100mm | 6pcsxΦ100mm | 8pcsxΦ100mm | 8pcsxΦ100mm |
Hydraulic motor power | 4kW | 4kW | 4kW | 4kW |
Heater tube power | 27kW | 48kW | 27kW | 48kW |
Heat pump power | 2.2kW | 2.2kW | 2.2kW | 2.2kW |
Max heating temperature | 120° | 120° | 120° | 120° |
Input voltage | Three-phase 380V 50Hz | Three-phase 380V 50Hz | Three-phase 380V 50Hz | Three-phase 380V 50Hz |
Dimensions | 3800 x 1700 x 1900mm | 3800 x 1700 x 2000mm | 4250 x 1700 x 2050mm | 4250 x 1700 x 2200mm |
Net weight | 5500kg | 7500kg | 7000kg | 9500kg |
120 ton hydraulic hot press – 3 layers
working table size: 1300 x 2500 mm
120 ton hydraulic hot press – 2 layers
Working table: 3000 x 1300mm
160 ton hydraulic hot press – 5 layers
working table size: 2500 x 1300mm
6.2 x 1.5m, 120 ton, hot press machine, Machine video
▶ Our Customizable Capacity
– Machine Customizable Capacity: from 5 tons to 1200 tons.
– Customized Hot Press Lines : designing custom hot press production lines, built to accommodate different production needs and product types.
– Extensive Expertise in Complete Production Line Design.
▶ Our capability for production line design and custom manufacturing
If the complete production line is needed, please contact us for the plan.
the real complete production line for your reference.
▶ For more information and good price
More innformation about the technical details of our hot press machines or request a good quote?
Please contact us!
